When companies add or relocate production equipment, they often focus on electrical requirements while overlooking the critical role of properly designed dust collection ductwork. Poorly sized or configured duct systems can lead to dust accumulation on equipment, products, within ductwork, and even in workers' lungs, creating operational and safety risks. Unlike electrical upgrades, duct modifications require specialized knowledge of airflow, dust transport, and collection system design. Many facility owners struggle with questions about system capacity, costs, equipment changes, and optimal performance. The key to a successful solution is partnering with a ducting and dust collection expert who can evaluate production equipment, material characteristics, and existing system challenges to design an efficient, cost-effective dust collection system that supports long-term operational needs.
Dustek Whispurr Model W2000 Dust Collector
Details

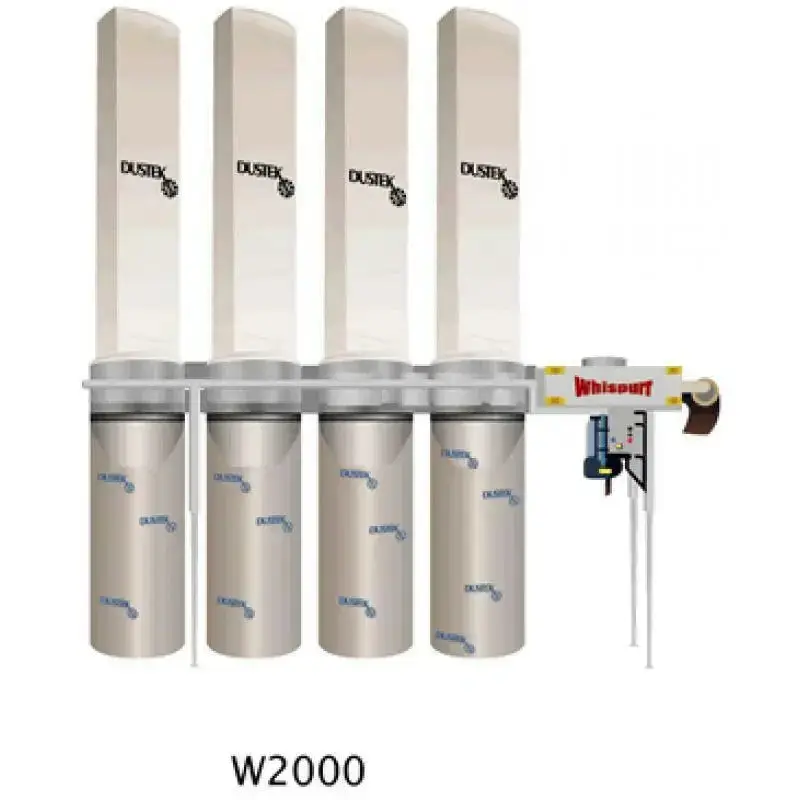

The Dustek Whispurr Model W2000 is an ultra-quiet, high-efficiency, self-contained internal return dust collection system built for serious production environments. Powered by a robust 20 HP, 3-phase Totally Enclosed Fan Cooled motor, the W2000 delivers a strong 7,000 CFM rating while keeping noise to a minimum—ensuring the internal electronics remain 100% dust-free for maximum service life. Proudly Made in America, the W2000 provides reliable suction and storage capacity for demanding daily manufacturing use.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Motor | 20 HP, 3-Phase (208-230/460V TEFC) |
| Sound Level | Ultra-Quiet "Whispurr" Design |
| Airflow Capacity | 7,000 CFM |
| Inlet Size | 14″ Diameter |
| Inlet Height from Floor | 81″ |
| Storage Capacity | 60 Cubic Feet (Total) |
| Filter Area | 210 sq. ft. |
| Weight | 1,600 lbs. |
| Dimensions | 42″ x 173″ x 149″ |
The "Whispurr" Advantage: Quiet, Efficient Performance
The W2000 features a dynamically balanced Whispurr impeller, engineered to move high volumes of air with minimal turbulence and noise. To optimize dust separation across its 4-bag filtration system, this model includes an External Adjustable Flange strategically installed between bags three and four to balance airflow.
What's Included?
- (4) Filtration Bags: 96″ bags with straps, yielding 210 sq. ft. of filter area.
- (4) Plastic Collection Bags: Each with 15 cubic feet of storage, for 60 cubic feet total, secured with quick-release straps and magnetic bag holders.
- "HANDI-BAG" Integral Dispenser: High-capacity plastic bag dispenser for quick replacements.
- External Adjustable Flange: Installed between bags three and four for precision airflow control.
- Complete Documentation: Operational manual and full parts list.
**This item ships via freight carrier on a pallet or crate. Shipping costs will be calculated based on your delivery address and invoiced separately after checkout. Additional fees may apply for liftgate service, residential delivery, or inside delivery.
Talk to a Duct Guy or Gal
Get started on a solution tailored to your needs, or explore our range of inline separators, self-dumping hoppers, and bag houses for even more ways to optimize your workspace.
